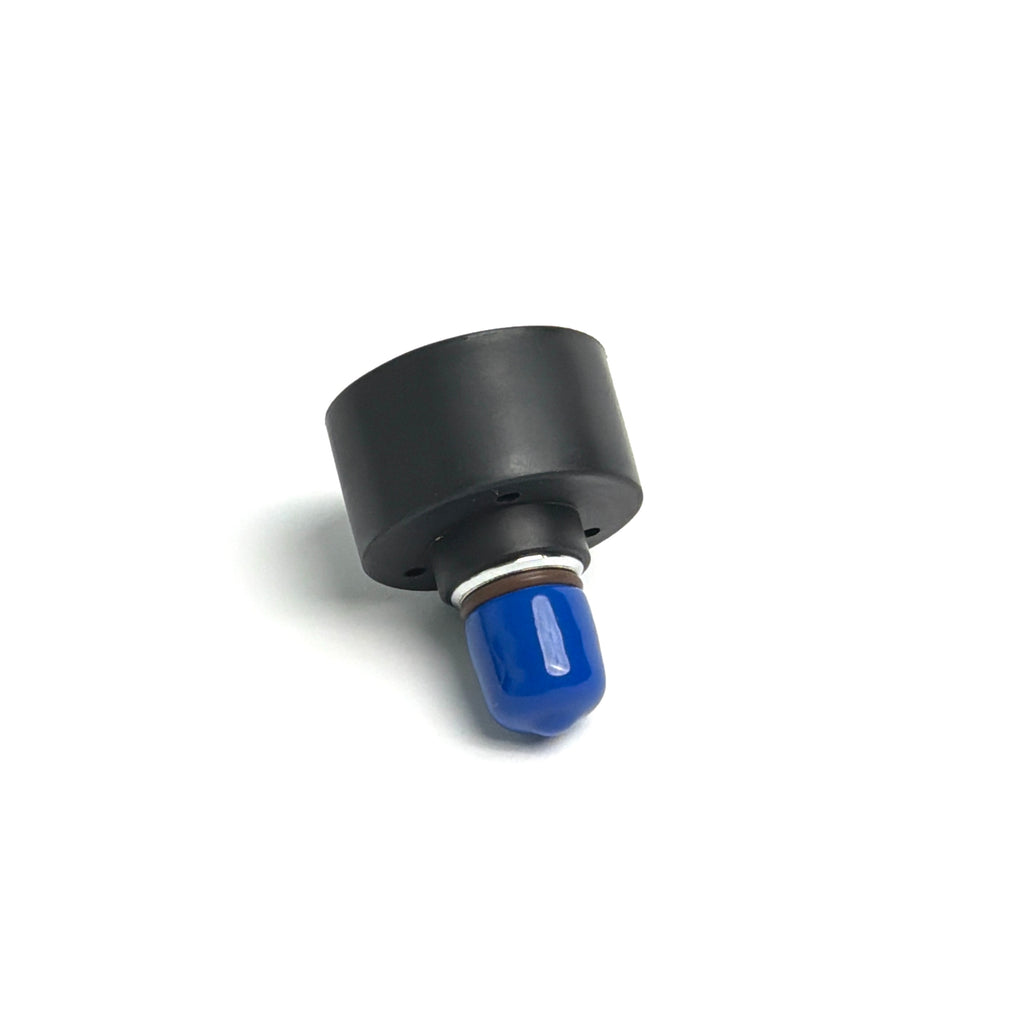

A compact, hose-less submersible pressure gauge that screws directly into a first stage HP port. Ideal for minimalist setups, stage bottles, and bailout cylinders where simplicity and reliability matter.

Features

• Screws directly into a standard 7/16"-20 HP port
• No HP hose or air spool required
• Dual-scale display with PSI and bar
• Clear numbered increments for quick pressure checks
• Protective rubber boot for impact resistance
• Compact, low-profile design

Specs

• Material: Brass, nickel plated; Rubber
• Pressure Rating: Rated up to 5000 psi (350 bar), Marked in 1000 psi / 100 bar increments
• Compatibility: Standard high-pressure regulator ports (7/16"-20)
• O-ring: Viton O-ring. Viton selected for durability and compatibility with oxygen-enriched gas
• Weight: 1.8 oz (50 g)

Use cases

• Pony and bailout bottles
• Inflation bottles
• Minimalist or streamlined regulator configurations
• Backup pressure indication without hoses

A simple, rugged pressure gauge for when you want fewer hoses, fewer failure points, and quick, reliable pressure information.

Made in Taiwan.
